0716-2426962RL-16系列金屬管熱熔斷體

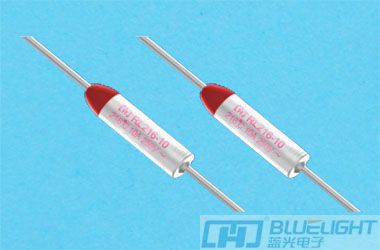

藍光RL-16系列金屬管熱熔斷體(溫度保險絲)簡介：
材料MATERIALS
金屬外殼Metal case：銅鍍銀 Silver Plated Copper
引線Leadwire：銅鍍錫 Tin Plated Copper Wire/銅鍍銀 Silver Plated Copper Wire
封口樹脂Sealing Resin：環氧樹脂 Epoxy Resin
陶瓷絕緣子Ceramic bushing：陶瓷 Ceramic
安規：CCC/TUV/PSE Approved（詳細見下表）
 |  |
尺寸 Dimensions (unit：mm)
| A | B | C | D | E | F |
| 35.0±1.0 | 11.0±0.5 | 20.0±1.0 | Φ1.0±0.1 | Φ4.0±0.1 | Φ1.0±0.1 |
產品特性及應用 PRODUCT FEATURES AND APPLICATIONS
材質 Materials | 金屬外殼Metal case：銅鍍銀 Silver Plated Copper 引線Leadwire：銅鍍錫 Tin Plated Copper Wire/銅鍍銀 Silver Plated Copper Wire 封口樹脂Sealing Resin：環氧樹脂 Epoxy Resin 陶瓷絕緣子Ceramic bushing：陶瓷 Ceramic | ||||||
特性 Features | 不可復位 No-resettable | ||||||
| 溫度精準 High accuracy of function temp | |||||||
| 環保 Rohs & REACH compliant | |||||||
應用領域 Application | 燈具、開關電源、家用電器、電機、變壓器、元器件、通訊等領域。 Lamps, Switching Power Supply, Home Electrical Appliances, Motors, Transformers, Components, Communications Field , etc. | ||||||
術語解釋 EXPLANATION OF TERMS
額定動作溫度 （TF） | 在僅通以不超過10mA的探測電流的條件下測得的使熱熔斷體導電狀態改變的溫度，熱熔斷體必須在上述溫度0/-10℃范圍內動作。 Temperature of the thetmal-link which causes it to change its state of conductivity with a detection current up to 10mA as the only load. Thermal fuse must be fusing within the scope of +0/-10℃. | |||||||
熔斷溫度 Fusing-off temperature | 產品放置油槽內并通以不超過10mA電流值 ，然后以0.5K/min 至1K/min 的速度穩定升溫 ，熱熔斷體實際動作溫度值。 The fusing-off temperature indicates value measured in the test oil bath and temperature be increased steadily with a rate of rise between 0.5K/min and detective current 10mA or less. | |||||||
保持溫度 （Th） | 熱熔斷體在規定的條件下通過額定電流且保溫168小時，其導電狀態不發生改變的最高溫度值或按IEC60691標準測試值。 The maximum temperature at which a thermal-link will not cause a change in state of conductivity to open circuit while conducting rated current for 168 hours or according to IEC60691. | |||||||
最高極限溫度 （Tm） | 由制造廠規定的溫度，在此溫度下熱熔斷體導電狀態已改變，但其機械性能和電氣性能在規定的時間內不致減弱。 Temperature of the thermal-link stated by the manufacturer , Up to which the mechanical and electrical properties of the thermal-link , Having changed its state of conductivity , Will not be impaired for a given time. | |||||||
技術參數 SPECIFICATIONS ( In accordance with GB/T9816.1 , IEC60691 , UL60691 )
型 號 Model | 額定動作 溫度 | 實測動作 溫度 | 保持溫度 | 最高極限 溫度 | 額 定 電 流 | 額 定 電 壓 | 安規認證 Safety Approvals | |||||
 |
|  |  |  |  | |||||||
| Tf(℃) | ℃ | Th(℃) | Tm(℃) | Ir(A) | Ur(V) | |||||||
| RL104-16 | 104 | 102±2 | 74 | 180 | 16 | 250 | ● | ● | ● | |||
| RL142-16 | 142 | 137±2 | 112 | 190 | 16 | 250 | ● | ● | ● | |||
| RL157-16 | 157 | 152±2 | 130 | 200 | 16 | 250 | ● | ● | ● | |||
| RL172-16 | 172 | 170±2 | 145 | 210 | 16 | 250 | ● | ● | ● | |||
| RL184-16 | 184 | 182±2 | 160 | 240 | 16 | 250 | ● | ● | ● | |||
| RL192-16 | 192 | 189±2 | 170 | 240 | 16 | 250 | ● | ● | ● | |||
| RL216-16 | 216 | 213±2 | 190 | 380 | 16 | 250 | ● | ● | ● | |||
| RL229-16 | 229 | 227±2 | 200 | 380 | 16 | 250 | ● | ● | ● | |||
| RL240-16 | 240 | 236±2 | 200 | 380 | 16 | 250 | ● | ● | ● | |||
