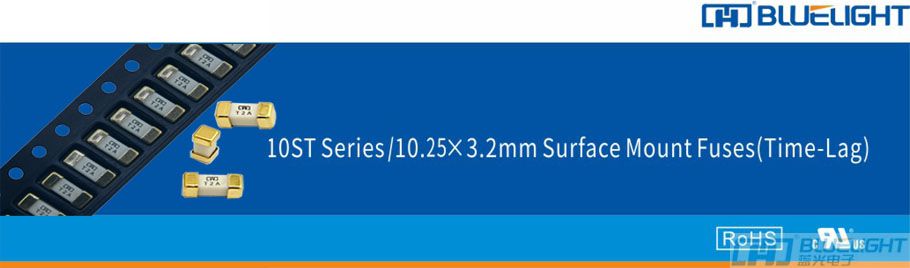

產品中心10ST 延時貼片保險絲
藍光 10ST 延時貼片電流保險絲簡介：
材料Materials
本體Body：陶瓷管 Ceramic Tube
銅帽Cap：黃銅鍍金 Brass with gold Plated / 黃銅鍍銀 Brass with silver plated
可熔體Element：合金絲 Alloy Wire
安規：cURus Approved（詳細見下表）
 |  |
| 電氣特性 ELECTRICAL CHARACTERISTICS | |||||||||
額定電流 Rated Current | 熔斷時間 Opening Time | ||||||||
| 100% | 200% | - | - | - | |||||
| Min. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 500mA-60A | 4hour | - | 120sec. | - | - | - | - | - | - |
In accordance with UL248-1 , UL248-14
| 分?jǐn)嗄芰?nbsp; INTERRUPTING RATING | |||||||
| cURus | 200A@250V/125V AC | ||||||
| 300A@100V/72V/63V/32V DC | |||||||
| - | |||||||
| 產品特性 PRODUCT FEATURES | |||||||
材質 Materials | 本體Body：陶瓷管 Ceramic Tube 銅帽Cap：黃銅鍍金 Brass with gold Plated / 黃銅鍍銀 Brass with silver plated 可熔體Element：合金絲 Alloy Wire | ||||||
操作溫度 Operating Temperature | -55℃~+125℃ (需考慮溫度折減 Consider de-rating) | ||||||
可焊性 Solderability | T熔錫溫度 T=235℃±5℃， 浸錫時間 t=5+0/-0.5s Cover/覆蓋率≧95% | ||||||
耐焊接熱 Resistance to Soldering Heat | 熔錫溫度 T=260℃±5℃， 浸錫時間 t=10s±1s | ||||||
建議焊錫參數 Recommended Soldering Parameters | 260℃，10s Max. (Solder-reflow / 回流焊) | ||||||
儲存條件 Storage Conditions | 在溫度+10~40℃、相對濕度≤75%的密閉條件下可存放2年。 Can be stored for 2 years under tight seal condition at temperature +10~40℃ relative humidity ≤ 75%. | ||||||
在溫度+10~40℃、相對濕度為95%的非露天下最多可存放30天。 At most can be kept 30 days at temperture +10~40℃ relative humidity be 95% under covered conditions. | |||||||
產品部件號 Part NO. | 額定電流 Current Rating | 額定電壓 Voltage Rating | 安全認證 Safety Approvals | I2T參考值 Reference (A2Sec.) | |||||
|
|
|
|
| |||||
| 10ST 0500 | 500mA | ● | 0.690 | ||||||
| 10ST 0600 | 600mA | ● | 1.320 | ||||||
| 10ST 0630 | 630mA | ● | 1.320 | ||||||
| 10ST 0750 | 750mA | ● | 1.400 | ||||||
| 10ST 0800 | 800mA | ● | 1.400 | ||||||
| 10ST 1100 | 1A | ● | 3.110 | ||||||
| 10ST 1125 | 1.25A | ● | 8.840 | ||||||
| 10ST 1150 | 1.5A | ● | 6.820 | ||||||
| 10ST 1160 | 1.6A | ● | 6.820 | ||||||
| 10ST 1200 | 2A | ● | 17.60 | ||||||
| 10ST 1250 | 2.5A | ● | 23.50 | ||||||
| 10ST 1300 | 3A | ● | 36.70 | ||||||
| 10ST 1315 | 3.15A | ● | 36.70 | ||||||
| 10ST 1350 | 3.5A | ● | 61.40 | ||||||
| 10ST 1400 | 4A | ● | 68.80 | ||||||
| 10ST 1500 | 5A | ● | 105.8 | ||||||
| 10ST 1600 | 6A | ● | 147.0 | ||||||
| 10ST 1630 | 6.3A | ● | 147.0 | ||||||
| 10ST 1700 | 7A | ● | 180.0 | ||||||
| 10ST 1800 | 8A | ● | 320.0 | ||||||
| 10ST 2100 | 10A | ● | 301.3 | ||||||
| 10ST 2120 | 12A | ● | 204.8 | ||||||
| 10ST 2125 | 12.5A | ● | 204.8 | ||||||
| 10ST 2150 | 15A | ● | 384.1 | ||||||
| 10ST 2160 | 16A | ● | 425.9 | ||||||
| 10ST 2200 | 20A | ● | 597.7 | ||||||
| 10ST 2250 | 25A | ● | 911.2 | ||||||
| 10ST 2300 | 30A | ● | 1312 | ||||||
| 10ST 2350 | 35A | ● | 1786 | ||||||
| 10ST 2400 | 40A | ● | 2332 | ||||||
| 10ST 2500 | 50A | ● | 3645 | ||||||
| 10ST 2600 | 60A | ● | 5248 | ||||||
