0716-2426962L5T系列/Φ5X20玻璃管保險絲(延時)

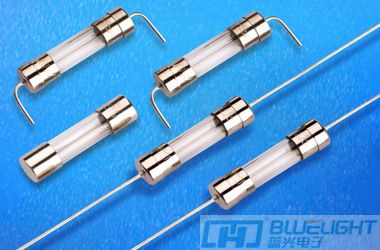

藍光L5T系列/Φ5X20mm玻璃管保險絲簡介：(延時小型保險絲)
Φ5X20mm 玻璃保險絲管（慢斷/延時）5X20mm Glass Tube Fuses (Time-Lag)
材料Materials
本體Body：玻璃管Glass Tube
引線Lead：鍍錫銅線Tin Plated Copper
銅帽Cap：黃銅鍍鎳Nickel Plated Brass
可熔體Element：合金絲Alloy Wire
工作溫度Operating Temperature：-55℃ to + 125℃
可焊性Solder ability：260 ℃, ≤ 3s. (波峰焊wave) /350±10 ℃, ≤ 3s. (烙鐵焊soldering iron)
安規：UL/CCC/CQC/VDE/PSE/KC Approved（詳細見下表）
|  |
| 電氣特性 ELECTRICAL CHARACTERISTICS | ||||||||
額定電流 Rated Current | 熔斷時間 Opening Time | |||||||
| 150% | 210% | 275% | 400% | 1000% | ||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 100mA | 1hour | 2min | 200ms | 10sec. | 40ms | 3sec. | 10ms | 300ms |
| 125mA-10A | 1hour | 2min | 600ms | 10sec. | 150ms | 3sec. | 20ms | 300ms |
| >10A | 1hour | 5min | 600ms | 15sec. | 150ms | 5sec. | 20ms | 400ms |
In accordance with IEC60127.1 , IEC60127.2 , GB9364.1 , GB9364.2
| 分?jǐn)嗄芰?nbsp; INTERRUPTING RATING | |||||||
| VDE | 35 amperes or 10x rated current ; whichever is greater at 250V AC | ||||||
| CQC/CCC | |||||||
| KC | |||||||
| PSE | 100 amperes at 250V AC | ||||||
| cURus | (100mA - 3.15A) 35 amperes at 250V AC | ||||||
| (4A - 10A) 100 amperes at 250V AC | |||||||
| (12A - 20A) amperes at 250V AC | |||||||
| 產品特性 PRODUCT FEATURES | |||||||
材質 Materials | 本體Body：玻璃管 Glass tube 引腳Lead：銅鍍錫 Tin plated copper wire 銅帽Cad：黃銅鍍鎳 Nickel plated brass 熔絲Element：合金 Alloy | ||||||
操作溫度 Operating Temperature | -55℃~125℃ (需考慮溫度折減 Consider de-rating) | ||||||
可焊性 Solderability | 260℃, 3s Max. (波峰焊 Wave) 350±10℃， 3s Max.(烙鐵焊 Soldering iron) | ||||||
耐焊接熱 Resistance to Soldering Heat | 260℃, 10s Max. (波峰焊 Wave) 350℃, 5s Max.(烙鐵焊 Soldering iron) | ||||||
建議焊錫參數 Recommended Soldering Parameters | 波峰焊 Wave soldering parameter 錫爐溫度 Soldering por temperature: 260℃. 焊接時間 Solder dwell time: 2-5s Max. | ||||||
手工焊 Hand soldering parameter 烙鐵溫度 Soldering iron temperature 350±5℃ 焊接時間 Solder dwell time: 5s Max. | |||||||
儲存條件 Storage Conditions | 在溫度+10~60℃、相對濕度≤75%的密閉條件下可存放3年。 Can be stored for 3 years under tight seal condition at temperature +10~60℃ relative humidity ≤ 75%. | ||||||
在溫度+10~60℃、相對濕度為95%的非露天下最多可存放30天。 At most can be kept 30 days at temperture +10~60℃ relative humidity be 95% under covered conditions. | |||||||
產品部件號 Part NO. | 額定電流 Current Rating | 安全認證 Safety Approvals | I2T參考值 Reference (A2Sec.) | ||||||
|  |
|
|
|
|
| |||
| L5T 0100 | 100mA | ● | 0.025 | ||||||
| L5T 0125 | 125mA | ● | 0.037 | ||||||
| L5T 0160 | 160mA | ● | 0.078 | ||||||
| L5T 0200 | 200mA | ● | 0.080 | ||||||
| L5T 0250 | 250mA | ● | 0.112 | ||||||
| L5T 0315 | 315mA | ● | 0.261 | ||||||
| L5T 0400 | 400mA | ● | 0.384 | ||||||
| L5T 0500 | 500mA | ● | ● | ● | ● | 0.609 | |||
| L5T 0630 | 630mA | ● | ● | ● | ● | 0.959 | |||
| L5T 0800 | 800mA | ● | 2.085 | ||||||
| L5T 1100 | 1A | ● | ● | ● | ● | ● | 4.163 | ||
| L5T 1125 | 1.25A | ● | ● | 8.262 | |||||
| L5T 1160 | 1.6A | ● | ● | ● | ● | ● | 13.07 | ||
| L5T 1200 | 2A | ● | ● | ● | ● | ● | 14.87 | ||
| L5T 1250 | 2.5A | ● | ● | ● | ● | ● | 20.25 | ||
| L5T 1300 | 3A | ● | ● | 21.39 | |||||
| L5T 1315 | 3.15A | ● | ● | ● | ● | ● | 47.39 | ||
| L5T 1350 | 3.5A | ● | ● | 52.65 | |||||
| L5T 1400 | 4A | ● | ● | ● | ● | ● | 67.50 | ||
| L5T 1500 | 5A | ● | ● | ● | ● | ● | 90.49 | ||
| L5T 1630 | 6.3A | ● | ● | ● | ● | ● | 221.6 | ||
| L5T 1800 | 8A | ● | ● | ● | ● | ● | 410.6 | ||
| L5T 2100 | 10A | ● | ● | ● | ● | ● | 688.5 | ||
| L5T 2125 | 12.5A | ● | ● | ● | ● | 729.0 | |||
| L5T 2150 | 15A | ● | ● | 1625 | |||||
| L5T 2160 | 16A | ● | ● | ● | 2015 | ||||
| L5T 2200 | 20A | ● | 3100 | ||||||
